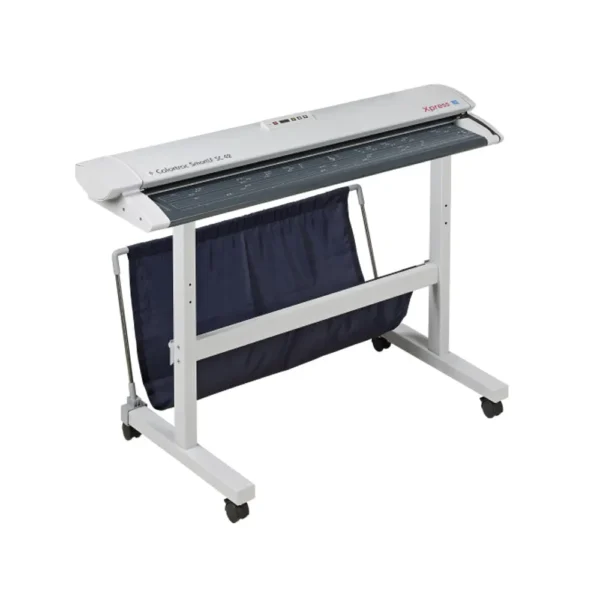

ColorTrac SmartLF SC 42 Xpress

With a straight-through paper path the SC 42 Xpress has a maximum media width of 44′ (1117mm) and scans documents and maps up to 0.08″ (2 mm) in thickness. This is more than enough to meet the requirements of AEC, CAD, GIS and the majority of work done by copyshop or service bureaux.

Dynamic Document Feed
SmartLF SC 42 Xpress SingleSensor allows the use of a simplified arrangement of rollers to ensure that the document always stays in contact with the optics. Driven rollers either side of the optical path and an active soft pressure roller running the full length of the SingleSensor allow the scanner to dynamically respond and actively work against the optical disturbances caused by document lift and paper creasing. This technology ensures that delicate or fragile media such as newspaper and old blueprints can be safely and accurately scanned without problem.

SuperSpeed PC Interface
The SmartLF SC 42 Xpress is the first large format scanner to incorporate the new SuperSpeed USB 3.0 digital interface. With a dramatic x10 increase in the internal data transfer rates, the new USB 3.0 interface works at up to 5Gb/sec.
In terms of speed of scan data saved to the computer this represents more than double the previous rate of 28MB/sec (USB2) to 65 -85 MB/sec for USB3 depending on computer manufacturer. SuperSpeed USB 3.0 is unique to Colortrac and allows the SmartLF SC 42 Xpress scanner to work at full speed using higher resolutions on wider documents than ever before.
For those without a USB3 equipped computer SmartLF SC 42 Xpress enhanced USB2 circuitry achieves a 25% improvement in data speed (35MB/sec) above the previously recognised industry average transfer rate of 28MB/sec for a normal USB2 equipped pc.
Higher data transfer gives the SmartLF SC 42 Xpress operator the freedom to scan wider and at higher resolutions without affecting productivity. If you have large amounts of archiving then SmartLF SC 42 is the perfect solution.
