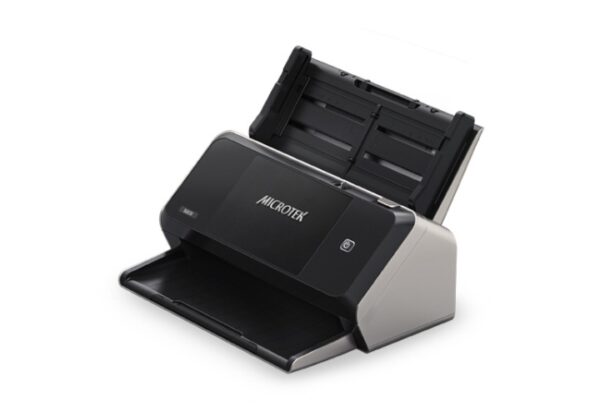

Microtek FileScan S6570

Introduction

The S6570 Microtek’s A3 High Speed Scanner, Compact, high-speed paper feeding, and stable scanning. Straight channel design, smooth paper feeding, 100-page large-capacity paper feeder, suitable for education, banking, government and other industries, quickly convert a large number of documents into electronic files.

FEATURES

75ppm/150ipm, 300dpi Color High-Speed Scanning

Color, gray, and monochrome scan speeds up to 75 ppm/150 ipm.

Ultrasonic double-feed detection

Avoid the consequence of paper jams or paper missing by ultrasonic double-feed detection.

Duty Cycle of 32000 Pages Per Day

The document feeder of the S6570 supports duty cycle up to 32000 pages per day, displaying a stable operation ability of the device and satisfying users’ demands towards large volumes of scan documents at the same time.

Auto scan

When the document is ready, the scanner will start scanning automatically until the user manually ends the scan.

Define the specified number to scan

The specific number of papers to be scanned can be preset.

Fold scan

The document can be folded in half and placed into the scanner. The scanner automatically scans both side, and combines them into a complete image for output.

Image split

Split the scanned image into two separate images. This function will automatically decide whether to split horizontally or vertically according to the length and width of the selected size.

A variety of image editing tools to meet your various needs

Brightness, contrast, sharpening, blurring, auto-deskew, frame removal, red ink removal, and background removal, etc.

SPECIFICATIONS

Product Name: S6570

Scanner Type: Desktop sheet-feed color scanner

Image Sensor Type: CIS

Resolution: 600 dpi

Light Source: LED

Scanning Mode: Color / Grayscale / B&W

Scanning Area:

Max: 12×40.9 in. (305×1039 mm)

Min: 2×2.12 in. (50.8×54 mm)

Scanning Speed:

Simplex: 75 ppm (A4, 300 dpi,color/grayscale/b&w, line art)

Duplex: 150 ipm (A4, 300 dpi,color/grayscale/b&w, line art)

Feeder Capacity: ≧100 sheets (A4:70g/m2)

Paper Weight (Thickness): 40~157 g/m2 (10.7~41.8 Ib.)

Duty Cycle: 32000 pages per day

Connectivity: USB 3.0

Feed Roller Life: 150,000 pages

Supported File Types: JPEG, PDF, TIFF, BMP, PDF, PNG, multi-page PDF, multi-page TIFF, double-layer PDF, double-layer OFD, etc.

OS Support: Windows 7/8/10 /11

Dimensions (L x W x H):

340 x 400 x 276 mm (Nomal)

714 x 400 x 378 mm (Expand)

Weight: 11.68Ibs.( 5.3kg)

System Requirements PC:

Windows 7 / 8 / 10 / 11

Software Included: DocWizard EX
