Introduction

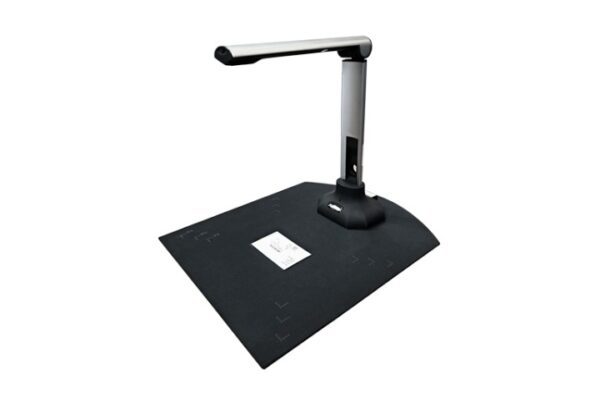

The H-Screen 911, Microtek’s A4 Document Camera, is provided with a 12-megapixel sensor and wide-angle lens. It can instantly recognize 1D/QR barcodes, record video films and merge images. Also, its bundled software is easy to install and catch up even for a beginner.
FEATURES
Easy to capture an A4 image with 12-megapixels lens
Easy to capture an image in A4 size with a 12-megapixels and wide-angle lens.
Upright and foldable design is easy to cary and store
The upright and foldable design of the H-Screen 911 is convenient to cary and store. Besides, with an appearance of classic silver-gray color, the H-Screen 911 looks beautiful and generous.
Easily captures clear images in just one second
Adopted with a 12-megapixels optical lens, the H-Screen 911 can easily deal with images in various sizes, such as business cards, ID cards, pictures A4 or A3 documents. Users can preview and save real time images in just one second.
Barcode Recognition
Recognize barcode information automatically.
LED fill lights
Built-in fill lights can improve the shooting problems caused by insufficient light and ensure the output quality of images.
LED fill lights
Built-in fill lights can improve the shooting problems caused by insufficient light and ensure the output quality of images.
Fast-to-use software interface
The installment process for the software is easy and fast. Besides, the software interface can be accessed easily at a glance. Many functions, such as image shooting, image processing and document management, can be performed precisely based on users’ preferences.
Display of real-time videos
They can be connected with a projector to display a real-time video.
Display of real-time videos
They can be connected with a projector to display a real-time video.
Auto-crop and auto deskew

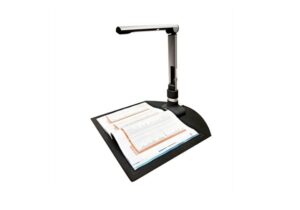

Used together with the included black pad and the function, the H-Screen 912L can automatically detect the size of the original image, crop to remove unwanted black borders and then correct distorted images for proper alignment.
Built-in Smart Edge Correction and Image Enhancement functions
These functions automatically filter out background colors of scanned document to enhance text contents. Also, they will remove uneven black boarders and fill in with the white to make scanned images clearner and tidier.
Image merging
By predefined settings, users can merge images according to page numbers and image directions. If the “Save source image” option is checked, each image used in image merging will be saved and listed under a table.
SPECIFICATIONS
Product Name: H-Screen 911
Scanner Type: Document Camera
Image Sensor Type: CMOS
Resolution:
Still Image: 4000 x 3000 (12 megapixels)
Video: 750 x 630 pixels
Light Source: LED
Scanning Mode: Color, grayscale, and black-and-white
Scanning Area: A4, A5, A6
Bit Depth: 24-bit
Connectivity: USB 2.0
Supported File Types:
Still Image: JPG, BMP, PNG, TIF, PDF
Video: AVI, WMV, MP4
OCR: TXT
OS Support:
Windows XP / 7 / 8 / 10
Dimensions (L x W x H)
100 x 128 x 306 mm
Weight:
760 g
Power Source:
5V, 500mA by USB powered
System Requirements PC:
Windows XP / 7 / 8 / 10
Software Included:
MicrotekCamScan MIZK
Adobe Acrobat Reader
