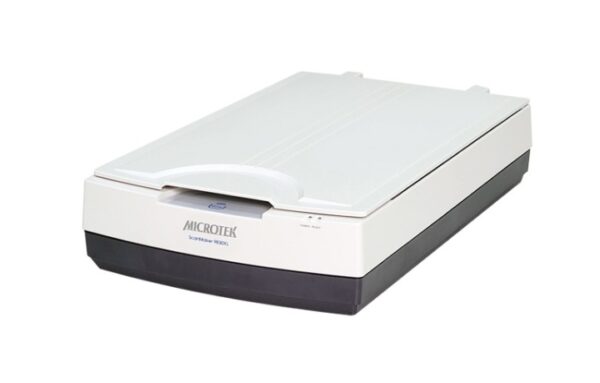

Microtek ScanMaker 9830XL

Introduction

The ScanMaker 9830XL offers a large A3 scanning area and high-precision optics, perfect for professionals who demand excellent image quality. With high optical density and outstanding color resolution, it captures details and colors that make every image look vivid and true to life. The dual light source technology also adds depth and enhances detail for more realistic images.

With the optional TMA transparency unit, the ScanMaker 9830XL can also scan slides and film, meeting the diverse needs of photography and design. Whether for design firms, publishers, libraries, or personal studios, the ScanMaker 9830XL is the ideal choice for large-format image and document scanning, providing exceptional support for your creative projects!

FEATURES:

Large A3 Scanning Area

With a maximum scanning area of 12″ x 16.9″, it handles a variety of materials, including large artworks and architectural blueprints. Perfect for artists, designers, and studios, delivering high-quality results for professional imaging and creative projects.

Dual Light Source with Flexible Adjustment

Featuring dual lighting, it offers single or dual-light modes: single-light enhances shadow depth, while dual-light reduces crease shadows for optimal image quality.

Exceptional Image Quality and Color Accuracy

With 1600 dpi optical resolution and a color calibration tool, it ensures precise detail reproduction and consistent, accurate colors.

Professional Scanning Software

LaserSoft SilverFast Ai Studio is a globally renowned scanning software with an intuitive graphical interface. Its user-friendly design lets you effortlessly access powerful features, making it ideal for users with high-quality image demands.

Flexible TMA Support

An external Transparency Media Adapter (TMA) expands functionality to scan slides, positives, negatives, and X-rays, supporting sizes up to 11.7″ x 15.9″.The dedicated TMA film holder simplifies scanning 35mm slides, 120 format (60 x 170 mm panoramic filmsstrips) and 4″ x 5″ sheets, covering most film types for business and professional use.



SPECIFICATIONS:

Product Name: ScanMaker 9830XL

Scanner Type: Desktop color flatbed scanner

Image Sensor Type: CCD

Resolution: 1600dpi x 3200dpi

Light Source: LED

Scanning Mode: Color / Grayscale

Scanning Area

Reflective:

12” x 16.9”/ 304.8 x 429.3 mm

Transparent:

11.7” x 15.9”/ 297.1 x 403.8 mm

Scanning Speed

Reflective: ≤ 12 sec. @400 dpi

Transparent: ≤ 11.5 sec. @400 dpi

Optical Density

Transparent: 3.8D

Memory Size: 8Gb

TMA Film Template Types (Optional):

35mm Slide Template

35mm Filmstrip Template

120 Film Template

4″ x 5″ Film Template

Connectivity: USB 3.0

Drivers: TWAIN

Smart-Touch Buttons: 1 button

Supported File Types: JPG, TIFF

Dimensions (L x W x H):

27.2″ x 15.2″ x 5.9″ / 690 x 385 x 150 mm

27.2″ x 15.2″ x 7.7″ / 690 x 385 x 195 mm (with / TMA)

Weight:

24.3 lbs / 11 kg

33.1 lbs / 15 kg (with / TMA)

Power Consumption:

EMC Compliance

Class A

Power Consumption:

90W (Max)

Voltage

AC 100-240V, 50/60 Hz, 1.3A Max.

DC 24V, 3.75A Max.

Environment

Operating temperature:

41° to 104°F (5° to 40°C)

Relative humidity: 20% to 85%

System Requirements:

• Color display with 24-bit output capability
• 4GB RAM or more (8GB is recommended)
• Intel Core i5 or higher-grade CPU
• Windows 10 / 11；macOS 11 or later

Software Included:

• ScanWizard-One (PC)
• ScanPotter (Mac)

Optional Software:

LaserSoft SilverFast Ai Studio

(PC / Mac)
