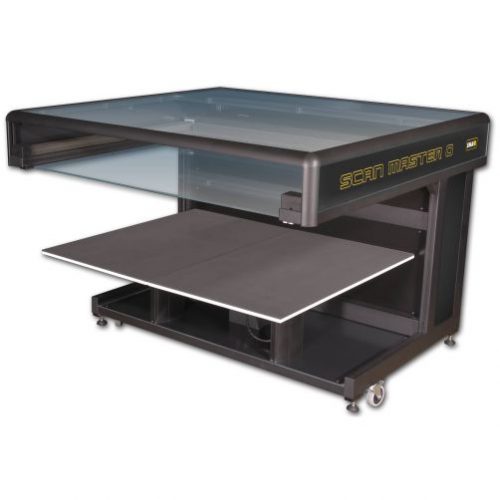

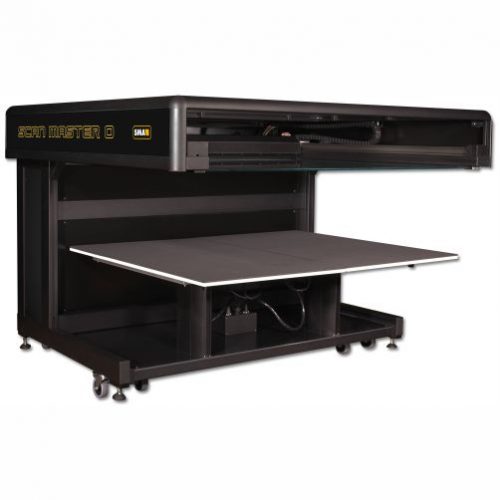

SMA Scan Master 0 4838

A0 Book Scanner with a New Design.

SCAN MASTER 0 4838 is an alternative to the well-known SCAN MASTER 0 3650. With a scan orientation like the SCAN MASTER 2 and SCAN MASTER 1, it scans bi-directionally, achieving a higher productivity than the SCAN MASTER 0 3650. Moreover, the SCAN MASTER 0 4838 is upgradeable to a robotic scanner. With a motorized standard book cradle of 35cm range, it can handle really big stuff. If this is not enough an optional motorized 50cm book cradle is available.

Operating the SMA SCAN MASTER 0 4838 A0 book scanner is easy and convenient. Simply place the book and hit the scan button. The rest of the process is fully automatic. All the operator has to do is to flip the page and release the scan.

All SMA scanners are equipped with a special LED light illuminator that does not produce any ultraviolet or infrared radiation. Harmless and uniform illumination is guaranteed. The illuminator of all SMA scanners is located inside the scan head and is simply moved across the original. As a result, all SMA book scanners can be operated independent of ambient light and there is no visible light to irritate the operator’s eyes.

The SCAN MASTER 0 4838 A0 book scanner comes with V3D Technology – a new scanning technology which allows users to scan many different types of originals. It offers the capability of digitizing structured surfaces such as wood, rubber, plastic, fabrics, carpet and many more types of material.

In addition, light reflecting items such as coins, seals, metal prints, silver or gold-coated originals can be captured at the highest quality. The V3D technology presents new opportunities as it can be applied to materials outside the normal archive and library world.

V3D stands for Visual 3-Dimensional. It is a newly designed scanning technology that produces results that look like 3D. The process is such that an area is captured with several different lighting scenarios on the fly. The software then combines the separate images into one image. As a result, V3D images offer perfect reproductions of nearly any structured surface. In addition, it increases the depth of field significantly. This approach is unique and raises the outstanding image-quality of SMA scanners to another level. The V3D function can be disabled and the regular 2-Dimensional scanning can be performed.

Features

• Scanning range above A0
• Very high optical resolution
• Extremely high scanning speed
• Free of Infrared and Ultra-violet radiation
• Visual 3D (V3D) technology
• Bi-directional scanning
• Motorized heavy duty book cradle
• Premium and consistent output images independent of ambient light

Specifications

• Scanning range: 914 x 1270 mm (36 x 50 inches)
• Optical resolution of 600dpi over the entire scanning range
• 48-bit color depth
• An IP device with its individual IP address
• Motorized 35cm pull-out book cradle as a standard feature
