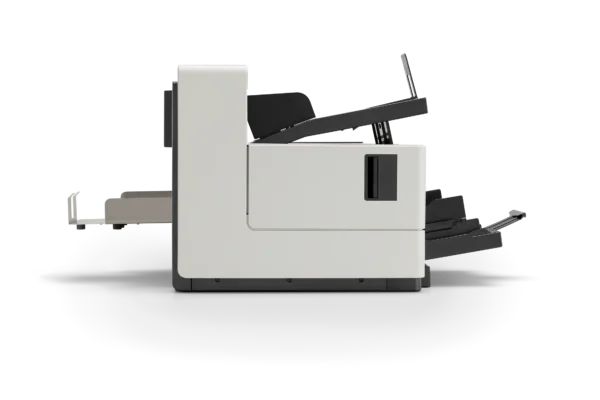

Kodak S5160
Built on 30 years of manufacturing innovation, it combines durability with advanced imaging — featuring Dual White LED CCD technology, Tri-Stream output capabilities, ultrasonic multifeed detection, and intelligent document protection with metal detection.
Key Features
- Scan Speed: 160 ppm / 320 ipm
- ADF Capacity: 750 sheets (80 g/m²)
- Paper Size: Up to A3
- Scanner Type: High-Capacity Production Duplex Scanner
- Daily Scan Volume: Unlimited — rated for 24/7 continuous operation
- Connectivity: USB 3.2 Gen 1×1, 10/100/1000 Ethernet
- Warranty: 1-Year RTB
The KODAK S5160 is a high-speed production document scanner engineered for mission-critical, high-volume scanning environments.
Built on 30 years of manufacturing innovation, it combines durability with advanced imaging — featuring Dual White LED CCD technology, Tri-Stream output capabilities, ultrasonic multifeed detection, and intelligent document protection with metal detection.
Specifications:
| Throughput Speeds | 160 ppm / 320 ipm |
| Feeder Capacity | Up to 750 sheets of 80 g/m² (20 lb.) paper |
| Connectivity | 10/100/1000 Ethernet, USB 3.2 Gen 1×1 Compatible |
| Continuous Cropping Mode | This mode allows the user to scan documents of UNLIMITED length |
| Maximum Document Size | 305 mm x 10.16 m (12 in. x 400 in.) |
| Minimum Document Size | 63.5 mm x 63.5 mm (2.5 in. x 2.5 in.) |
| Paper Thickness and Weight | 25–433 g/m² (7–160 lb.) paper |
| Maximum Optical Resolution | 600 dpi |
| Accessories and Consumables | Carrier Sleeves (5 Pack), Feeder Consumables Kits, Imaging Guide Set, KODAK A3 Size Flatbed Accessory, KODAK Enhanced Printer Accessory, Manual Feed Shelf, Printer Cleaning Pads, Printer Ink Cartridge and Carrier, Rear Exit Tray Accessory, Switchable Background |
| Acoustical Noise | Off or Ready mode: <39 dB(A); Scanning: < 62 dB(A) |
| Approvals and Product Certifications | Argentina (S mark), Australia/New Zealand (RCM), Canada (cTUVus & ICES-003), European Union (CE), European Union (GS Mark), Japan (VCCI), Mexico (NOM), US (cTUVus & FCC), United Kingdom (UKCA) |
| Archival Standard Compliance | FADGI 2023: Documents (Unbound): General Collections 3-Star; FADGI 2023: Documents (Unbound): Modern Textual Records |
| Barcode Reading | Codabar, Code 128, Code 3 of 9, EAN-13, EAN-8, Interleaved 2 of 5, PDF417, QR, UPC-A, UPC-E |
| Data Security | This scanner processes scanned data exclusively through volatile memory ensuring image data is effectively erased upon shut down. |
| Dimensions and Weight | Size with tray in the upright position: Height: 43.4 cm / 17.1 in; Width: 69.3 cm / 27.3 in.; Depth: 55.4 cm / 21.8 in.; Weight: 132 lbs / 60 kg |
| Electrical Requirements | 100-240 V (International); 50-60 Hz |
| Environmental Certification | ENERGY STAR Qualified, 2013 EuP |
| File Format Outputs | BMP, LZW JPEG, Microsoft Excel, Microsoft Word, Multipage TIFF, PDF, PNG, RTF, Single-page TIFF, Text searchable PDF |
| Image Output Resolution Options | Up to 600 dpi (Supported DPI: 100, 150, 200, 240, 250, 300, 400, 500, 600) |
| Network Protocols | DHCP (or static IP), TCP/IP |
| Operating System Compatibility | Windows 10 (32- and 64-bit), Windows 11 (64-bit) Pro Version, Windows Server 2019 X64 Editions, Windows Server 2022 X64 Editions |
| Operating Temperature and Humidity | Operating Humidity: 15% – 80% RH; Operating Temperature: 15-35° C (59-95° F) |
| Operator Control Panel | 9.3 in. (235 mm) control panel with 7.5 in. (190 mm) graphical color touchscreen LCD and operator control buttons |
| Paper Path Options | Documents can exit into the front output tray, or at the rear of the scanner if the straight-through paper path option is manually selected |
| Sure Path Features | Controlled stacking, Enhanced jam recovery, Intelligent Document Protection, Interactive Operator Control Panel (OCP), Length Multifeed Detection, Rear exit, Ultrasonic Multifeed Technology |
| Perfect Page Features | Adaptive threshold processing, Add or remove border, Aggressive cropping, Autocrop, Auto white balance, Automatic color balance, Automatic color detection, Automatic Orientation, Automatic photo cropping, Automatic Brightness/Contrast, Barcode reading, Background color smoothing, Black and white image segmentation, Brightness and contrast adjustment, Color-on-the-fly toggle patch, Content-based blank page removal, Continuous Scanning Mode, Deskew, Digital stamping, Dual stream scanning, Electronic color dropout, Enhanced color adjustment, Enhanced color management, Fixed cropping, Fixed thresholding, Halftone removal, Image edge fill, Image hole fill, Image merge, Image split, iThresholding, Lone Pixel Noise Removal, Majority rule noise removal, Multi-lingual auto orientation, Multicolor dropout, Multiple document output, Orthogonal rotation, Output Compression-CCITT Group IV, JPEG, Uncompressed Output, Relative cropping, Sharpening, Sleeve scanning (for scanning A3 documents or multiple small documents), Snap to Size, Streak filtering |
| Power Consumption | Low Power Mode: less than 23.7 watts; Running (idle): less than 100 watts; Running: less than 240 watts; Standby: less than 0.5 watts |
| Recommended Daily Volume | Unlimited |
| Recommended PC Configuration | Intel i5 – Gen 12 or greater, 8 GB RAM, 500 GB |
| Scanning Technology | Dual White LED Illumination CCD; Grayscale output bit depth is 256 levels (8-bit); color output bit depth is 24 bits (8 x 3); color capture bit depth is 48 bits (16 x 3) |
| Standard Software and Drivers | ISIS Drivers, KOFAX certified, TWAIN Drivers, WIA Drivers |
